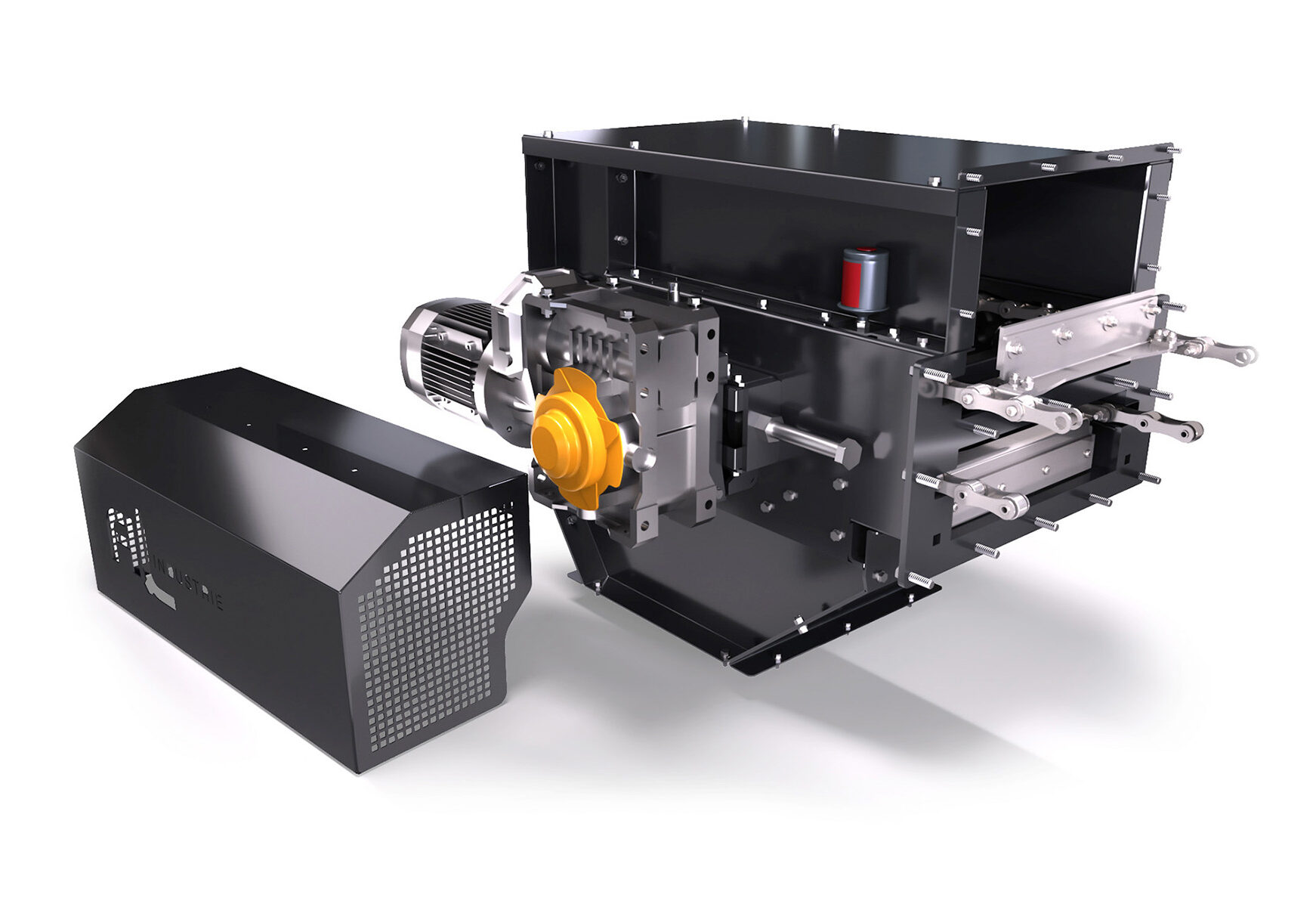

Modul’AL R300 conveyor
5 m3/h
The R300 is part of the new range of modular scraper conveyors developed by AL Industrie. This complete system of modules is designed to convey up to 5 m3/h of biomass, chips, waste, ash and biochar.

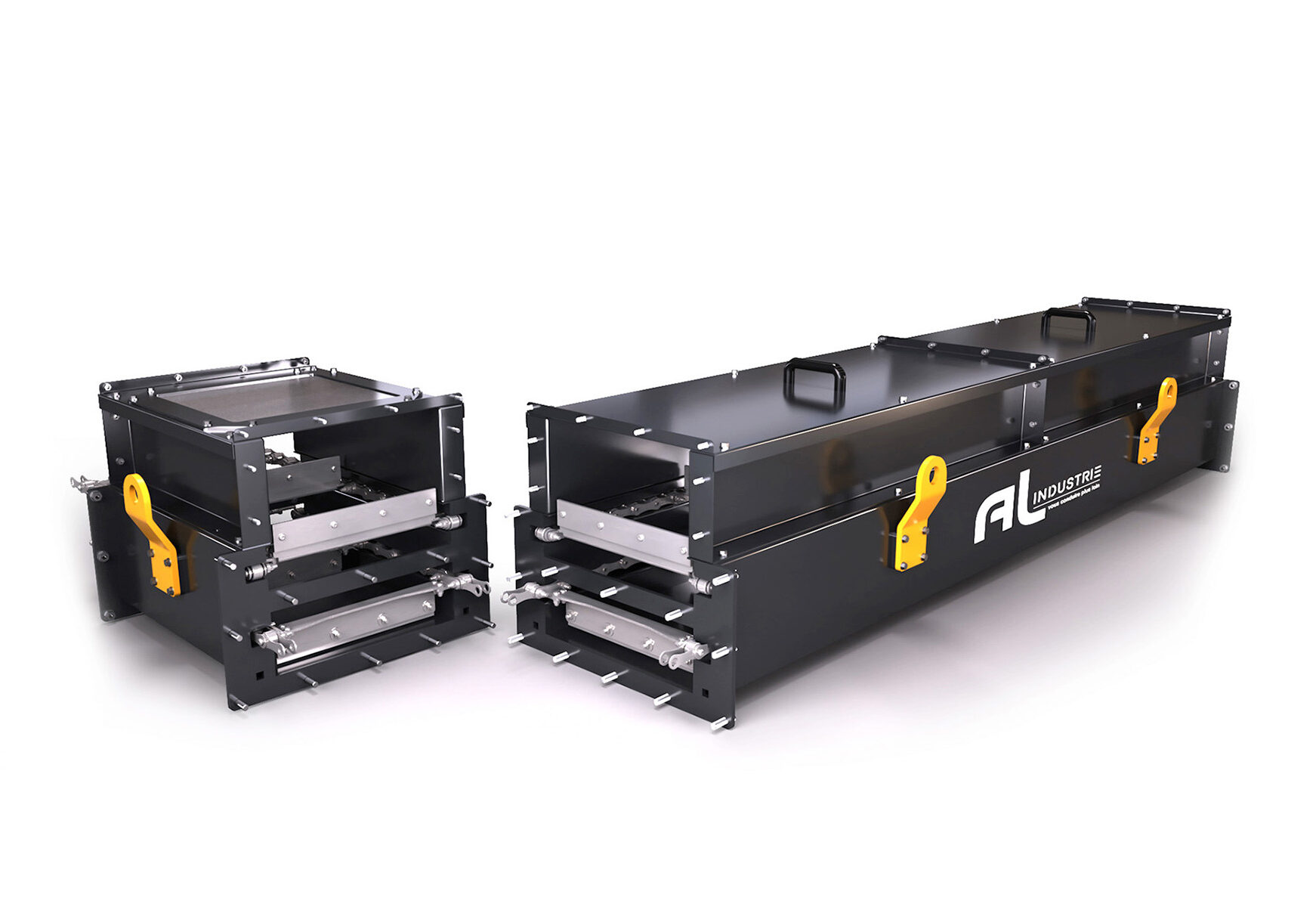

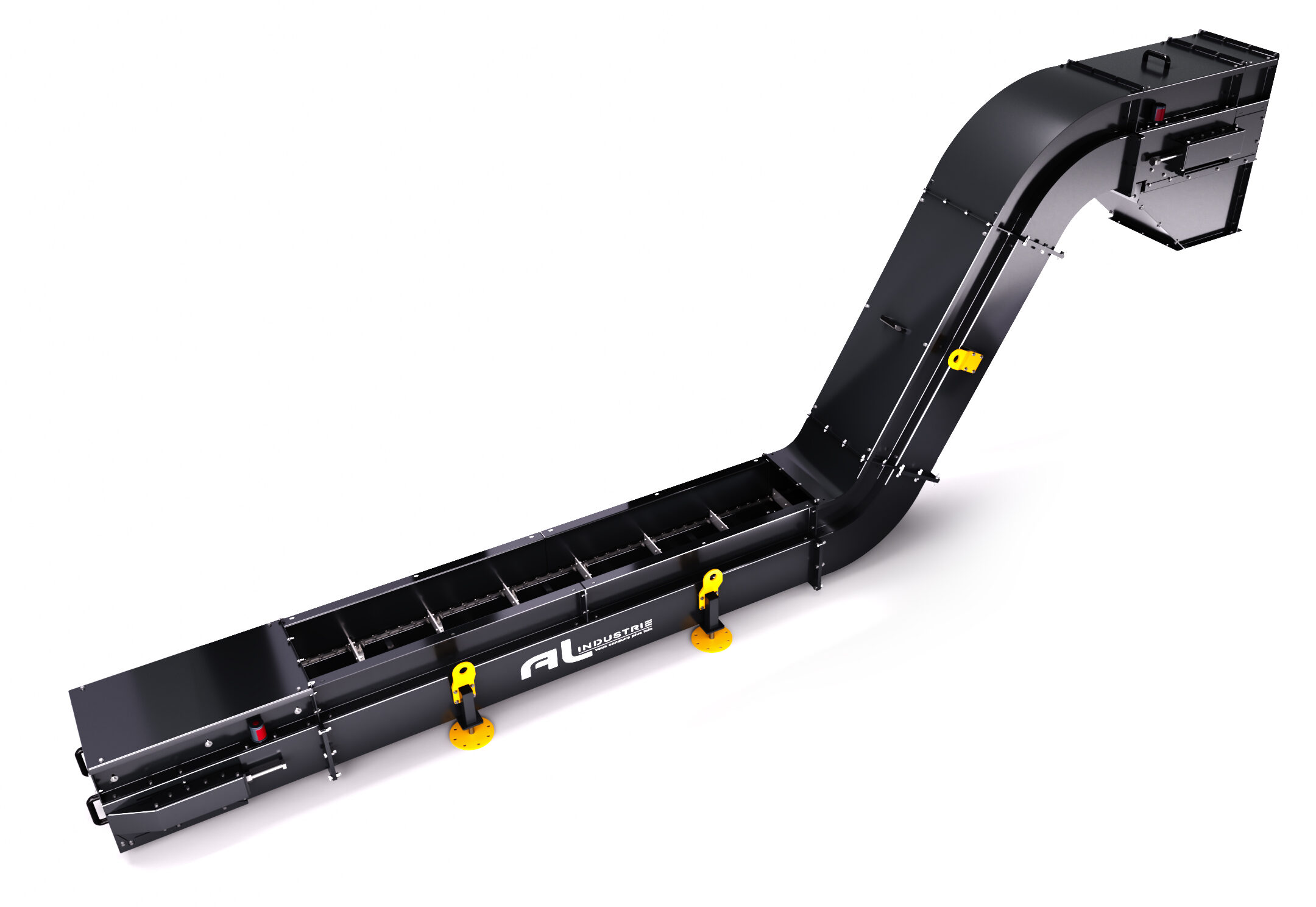

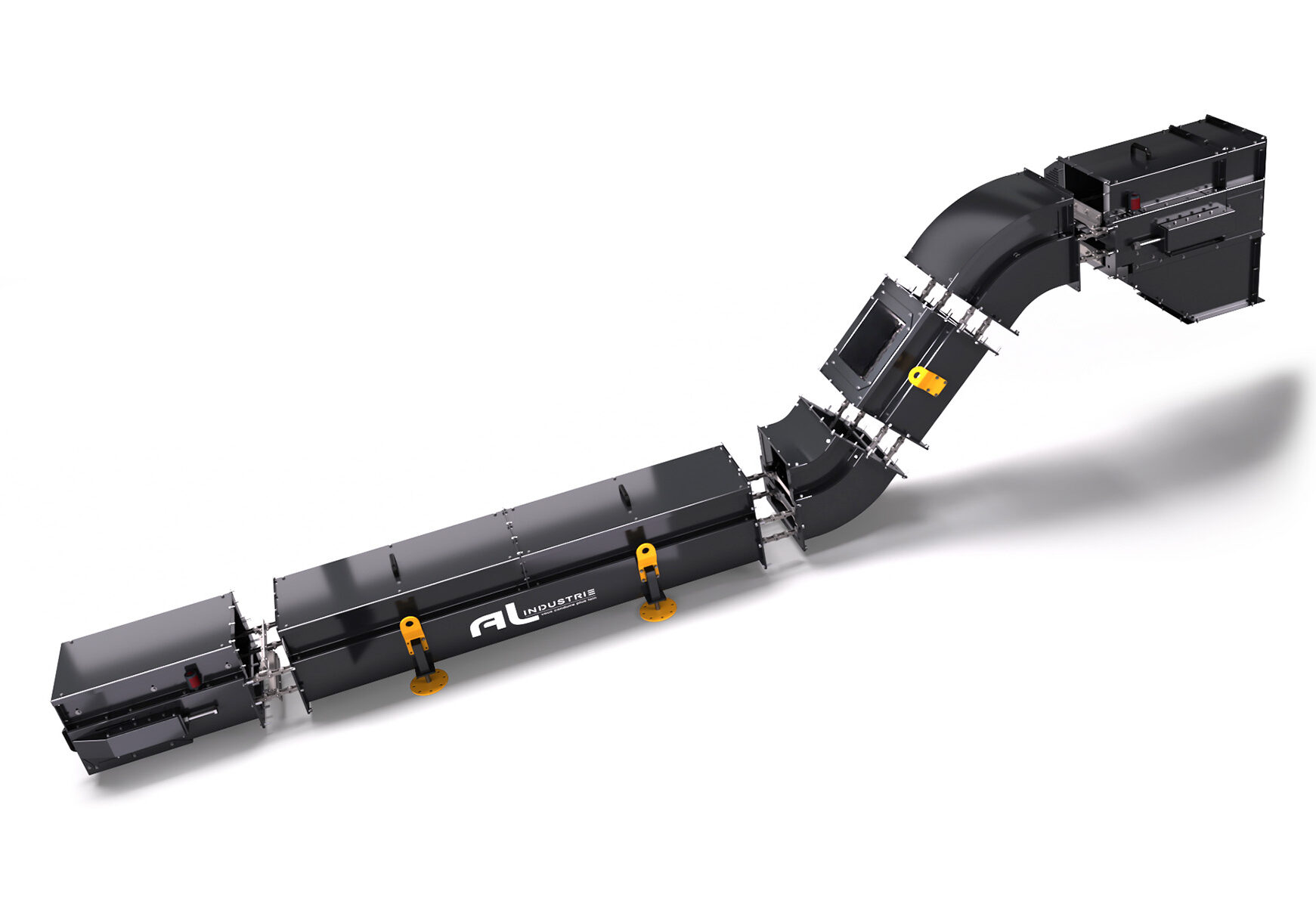

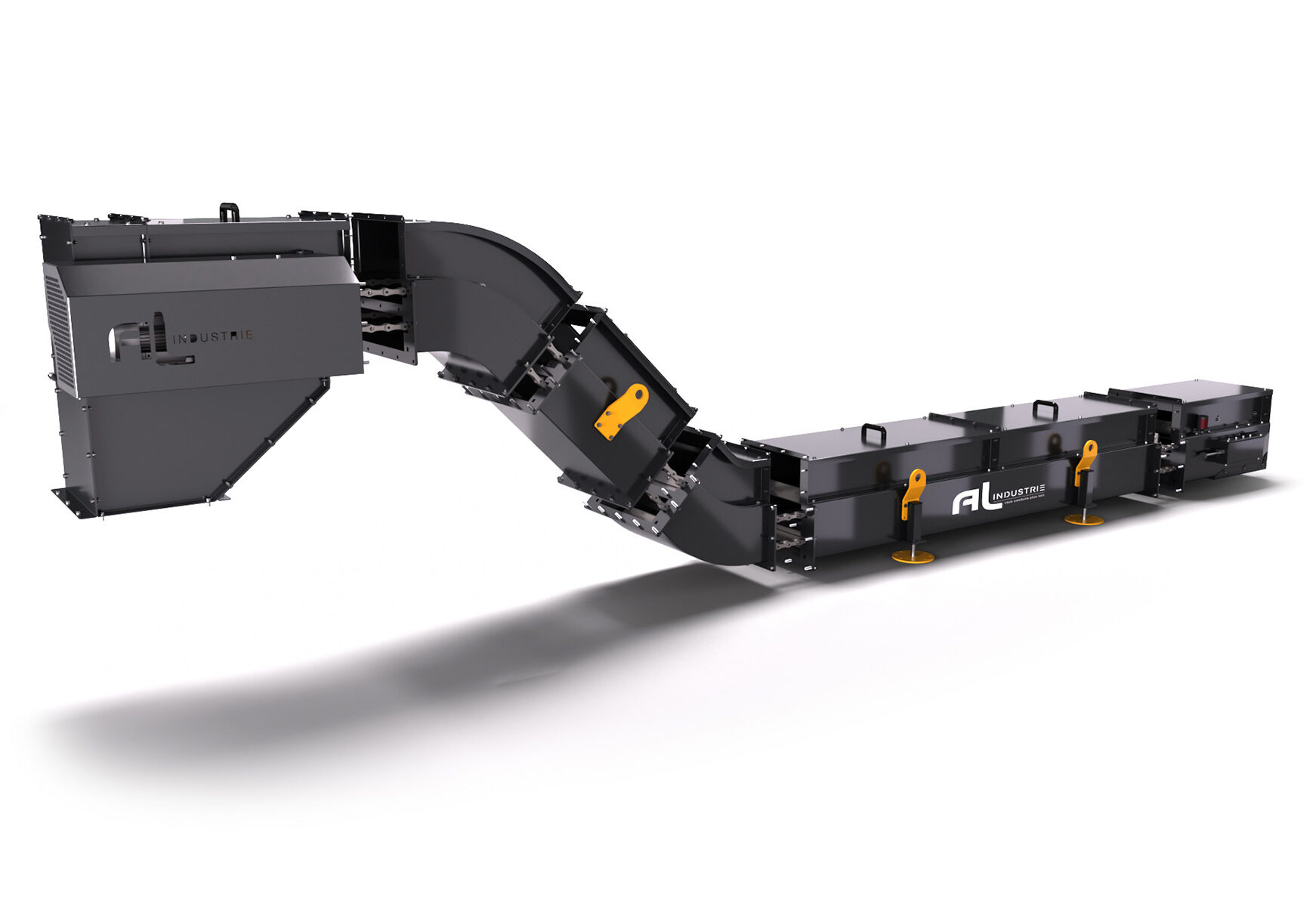

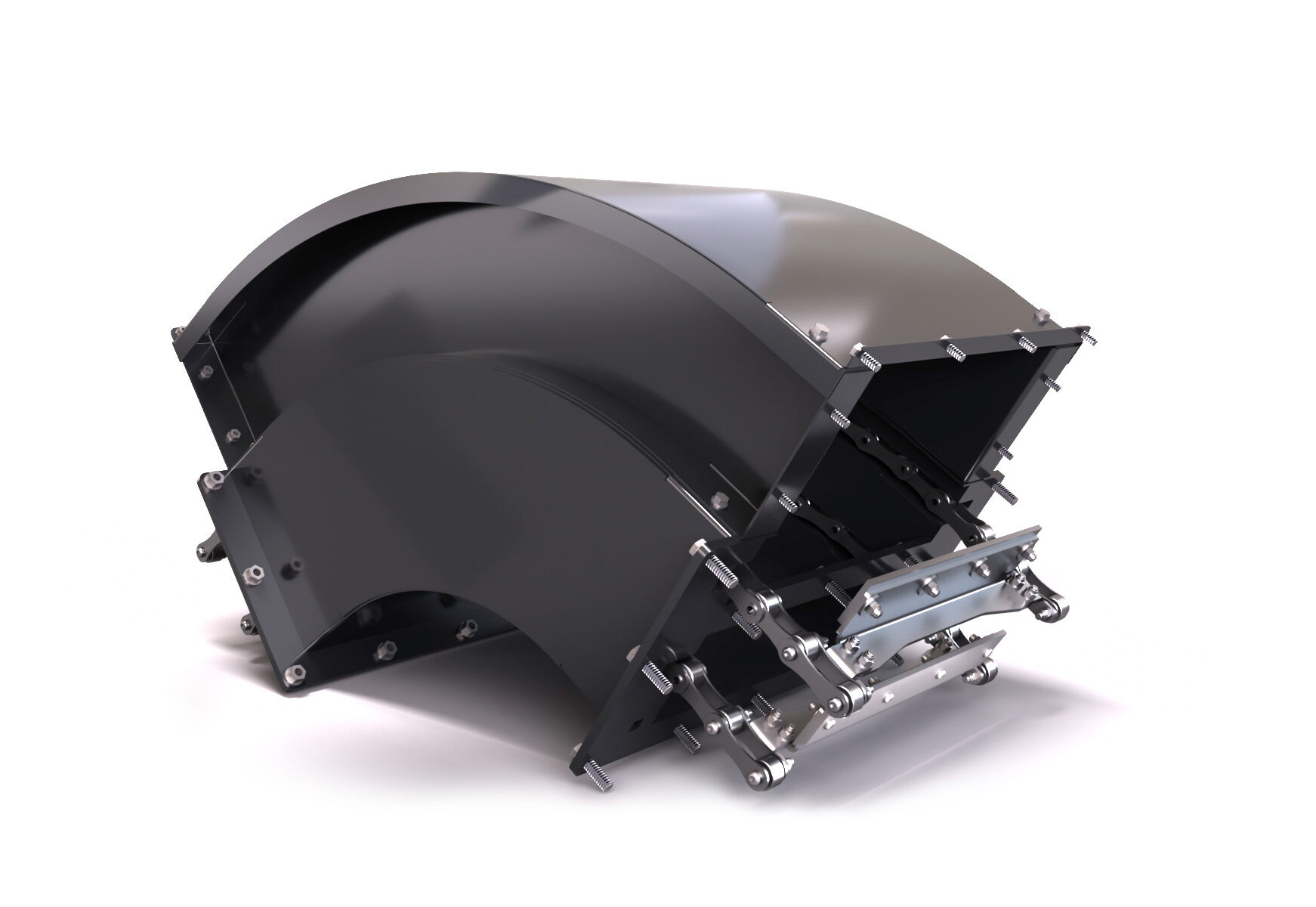

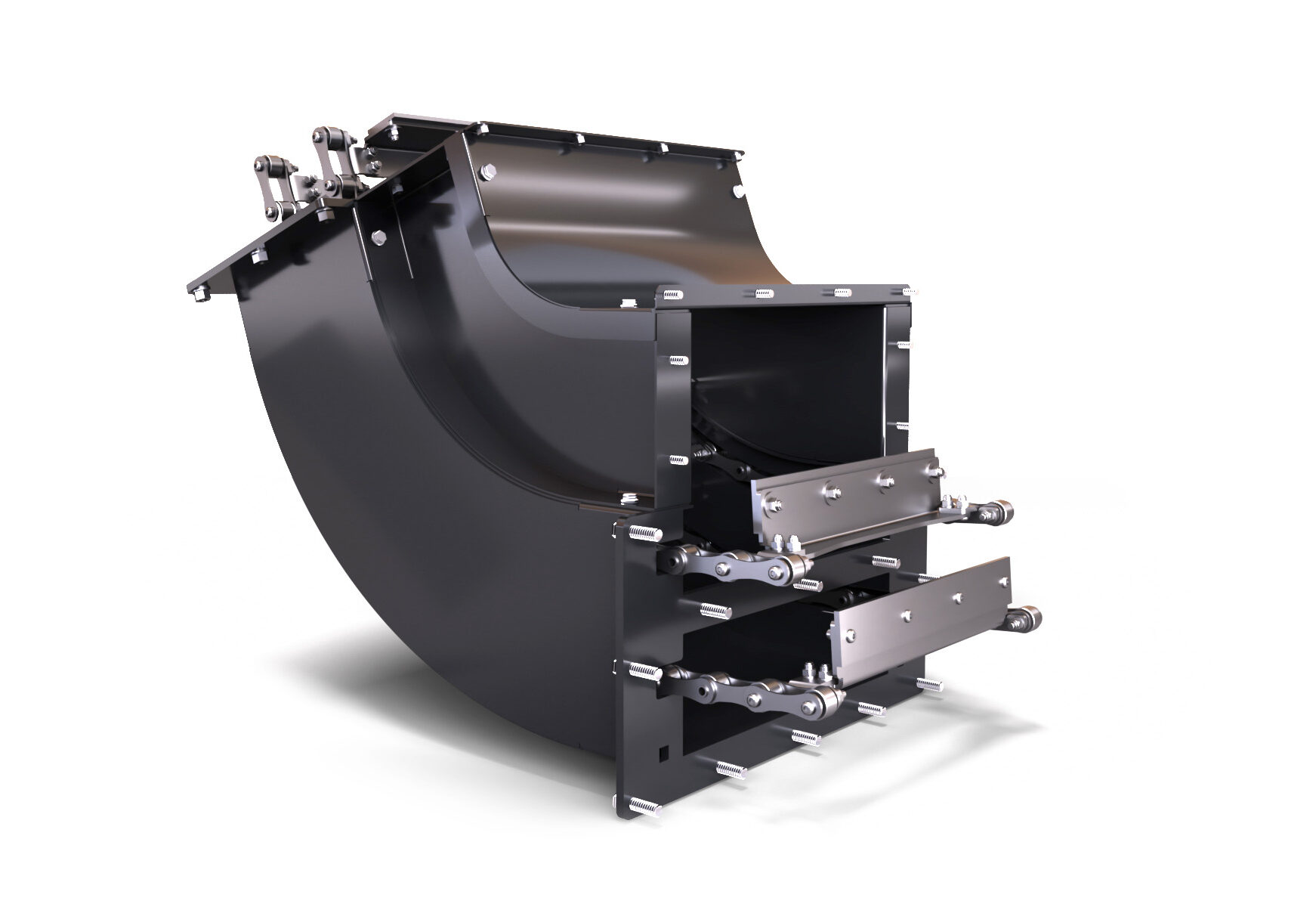

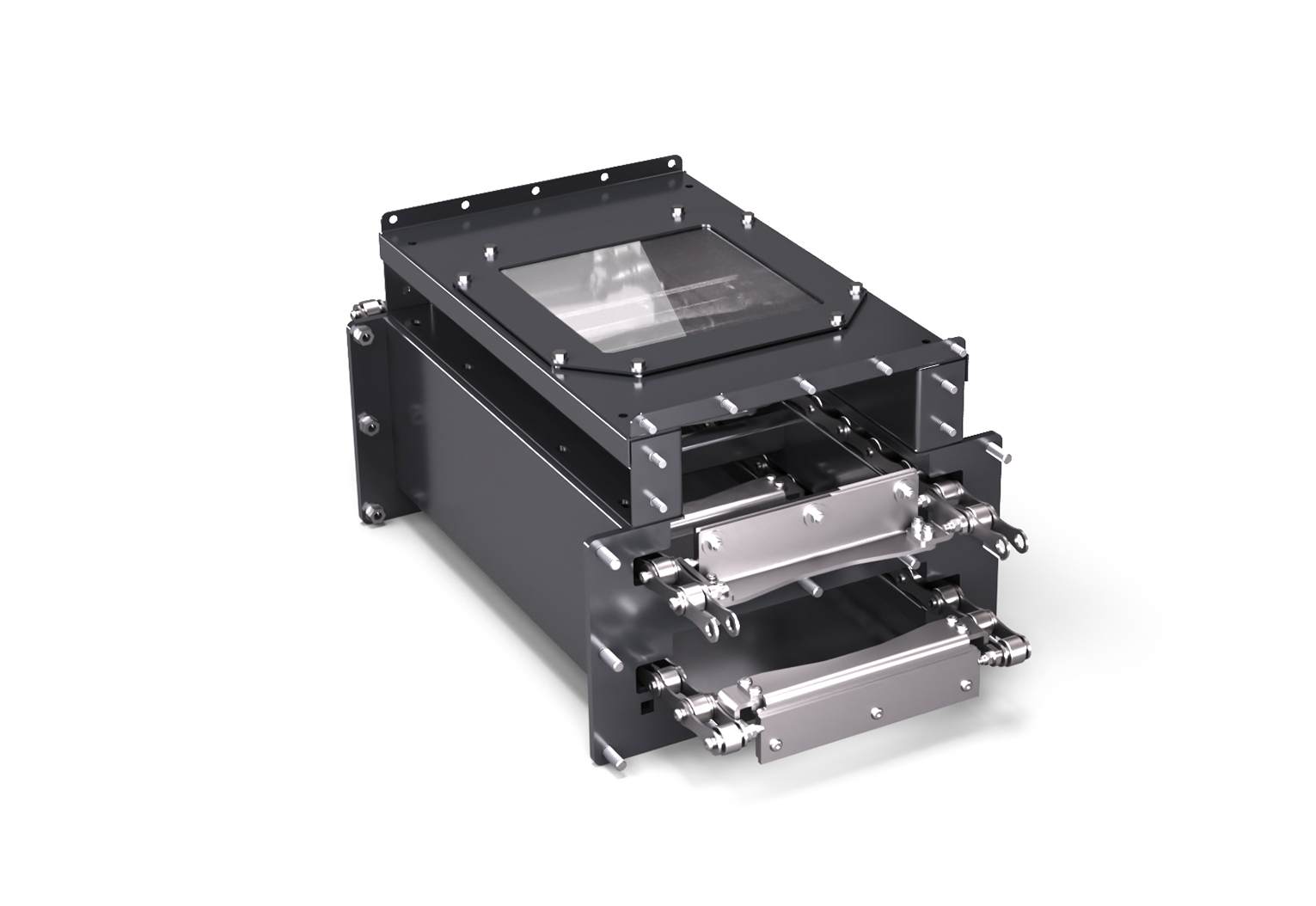

Modular scraper conveyors consist of back, straight, curved, head and foot modules. You can choose your own custom winding angulation: 0 - 30 - 45 - 60 - 70 degrees, to suit all your bulk projects.
| 1 - Exclusive structure guaranteed for 10 years. |
| 2 - Wear-resistant bearing races. |
| 3 - Machined guide curves. |

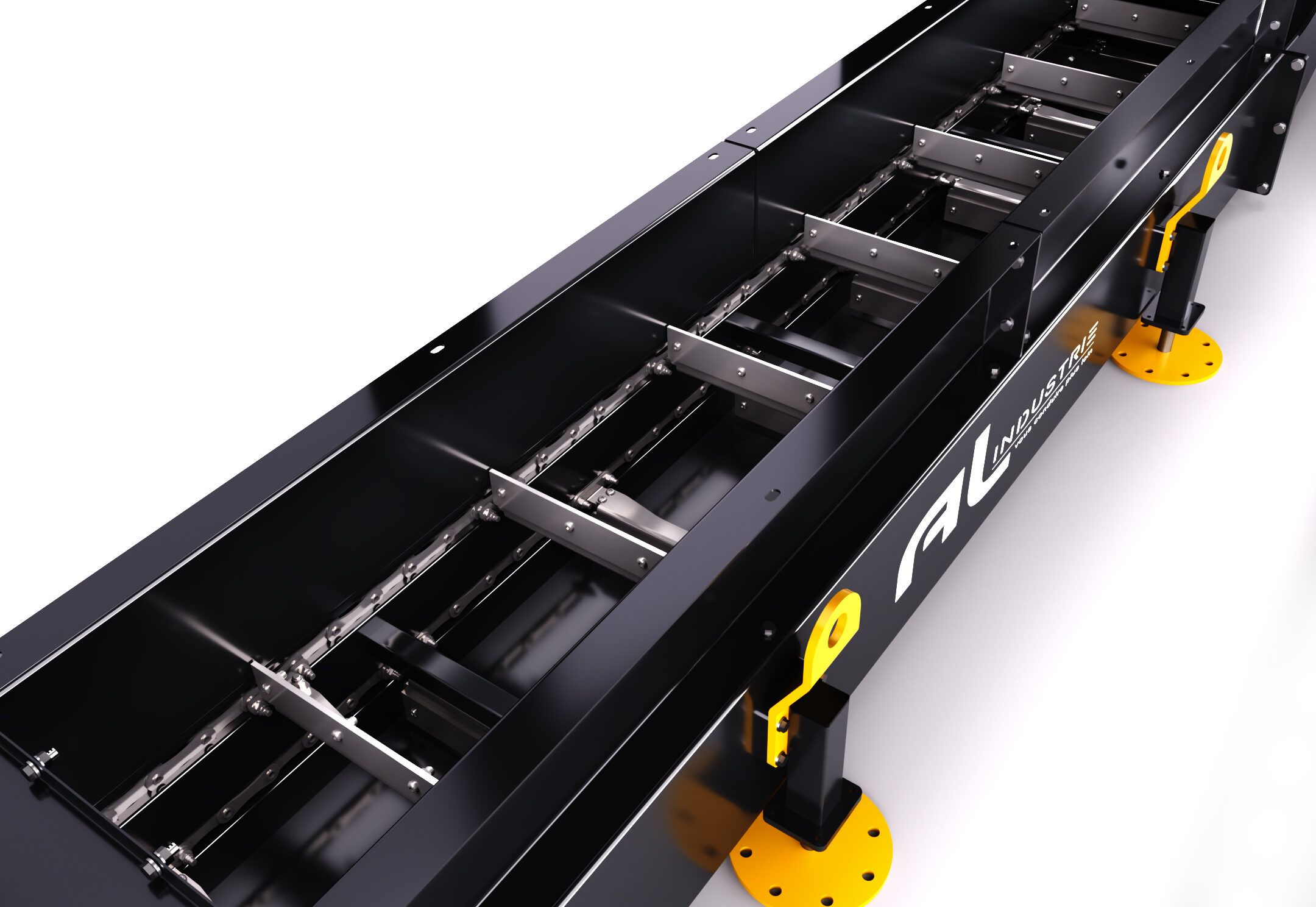

| 4 - High-strength steel, stainless steel or electro-galvanized squeegees. |
| 5 - Geared motor with integrated torque limiter. |
| 6 - Patented "anti chip return" system. |
| 7 - Lifting angles: 0 - 30 - 45 - 60 - 70 degrees. |
| 8 - Conveying 5 m3/h. |
| Ferrous waste disposal.... |
| Transport of wood, pellets... |
| Conveying plastics, cardboard... |
| The model's modularity makes it highly versatile and adaptable to all types of applications and environments. Do you have a convoying project in mind? Contact our experts. |
| Materials: P16 and P31 wood chips. |
| A : Feed (mm) |
| H: Height (mm) |
| L: Length (mm) |
| LT : Head (mm) |
| NW : Width (mm) |
| a: Angle |
