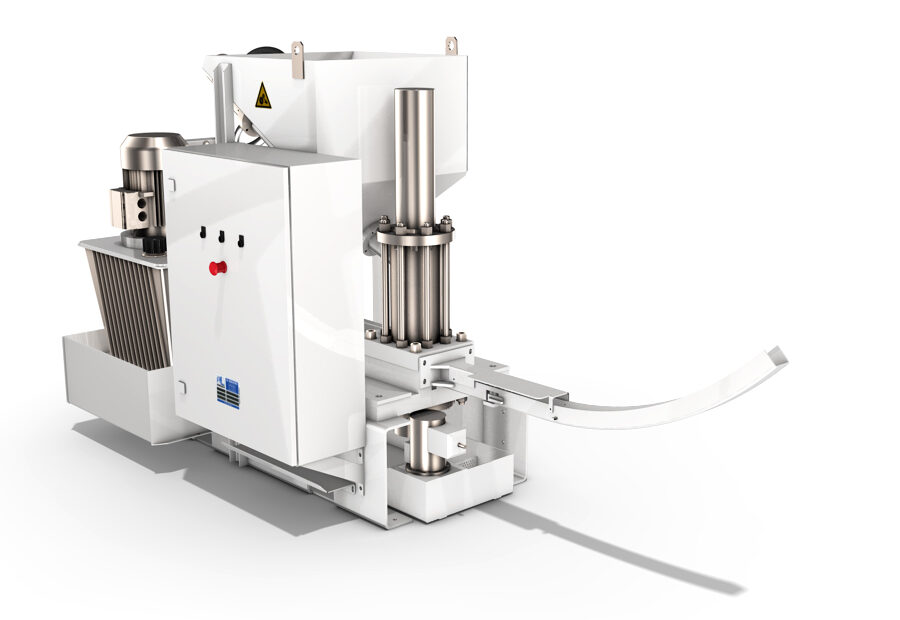

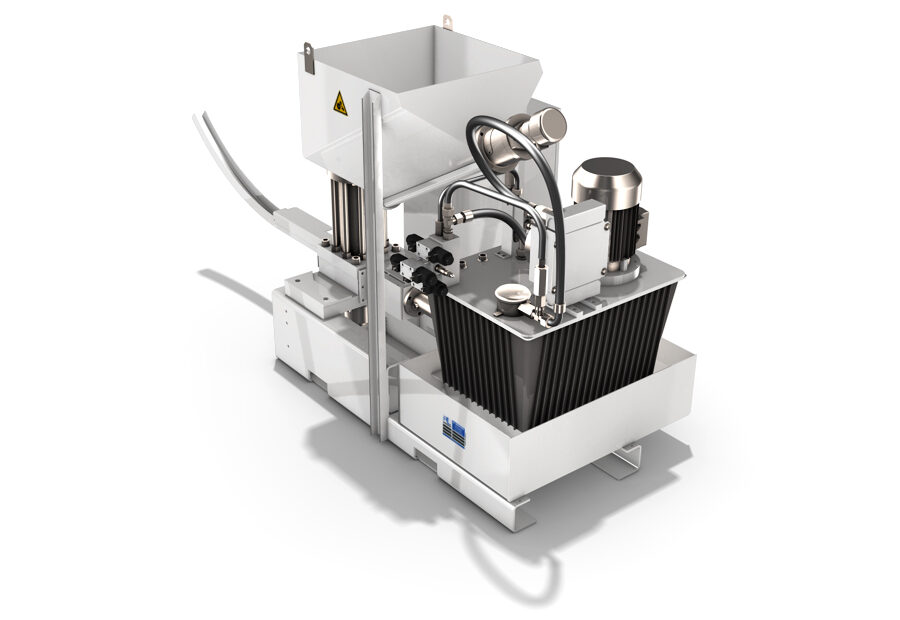

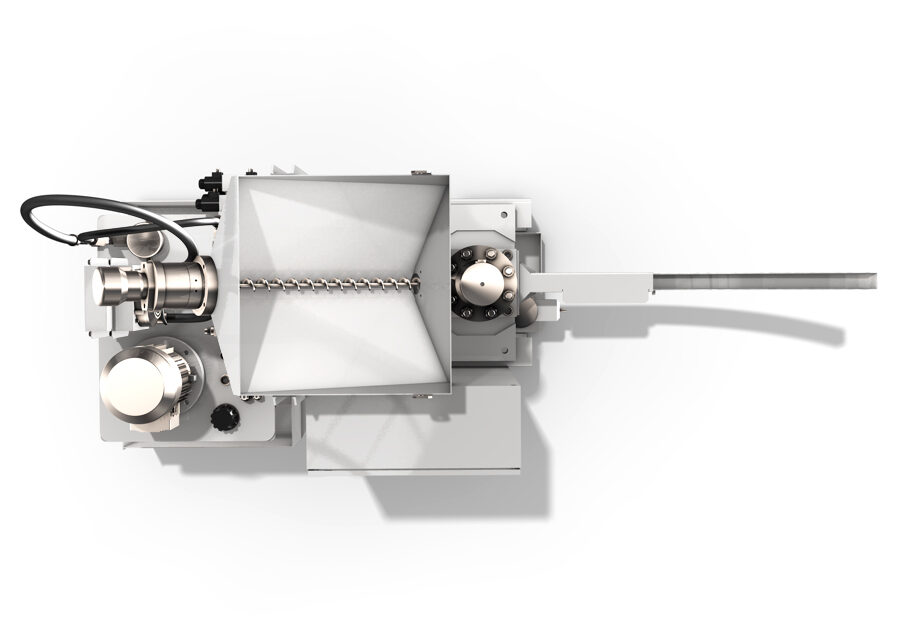

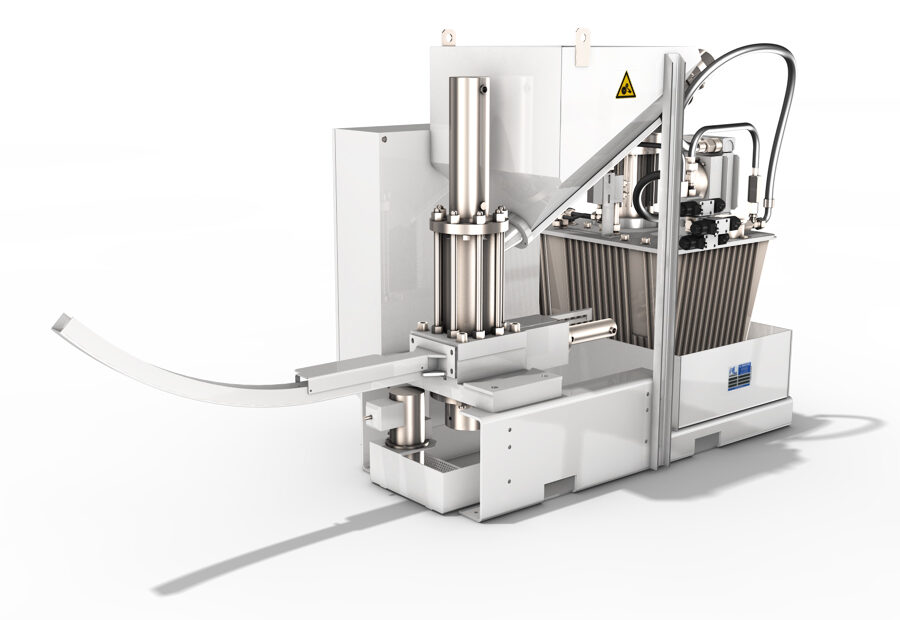

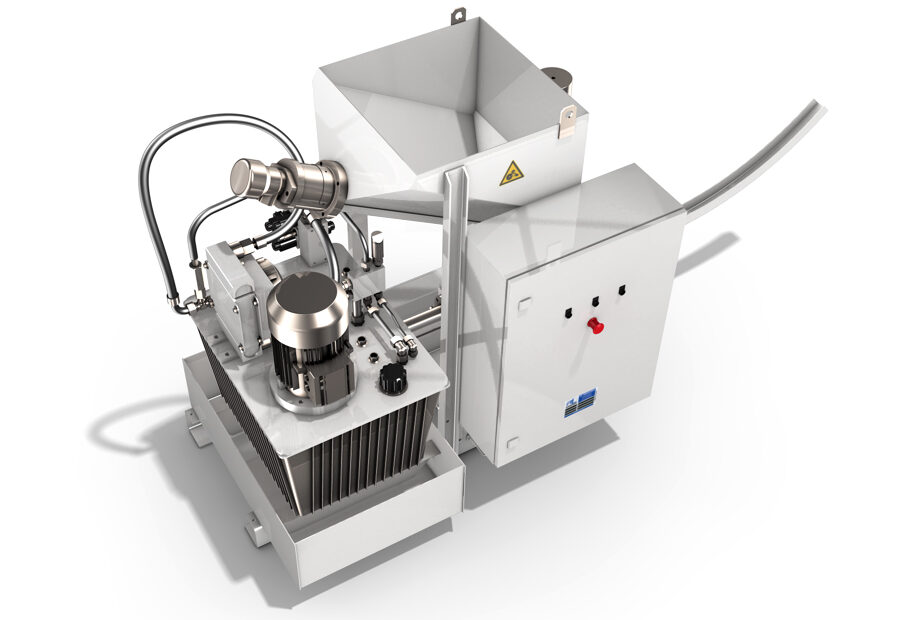

PM1 Bricklayer
The PM1 Bricklayer is a compactor that recycles your chips and sludge by reducing their size and moisture content. It fits perfectly into a chip processing line. It can compress chips into high-density, dry, compact briquettes. This allows you to recover the cutting fluid, enhance the value of your swarf recovery and reduce storage and transport requirements.
This model has a processing capacity of 20 to 50 kg/h of aluminum, steel and sludge. It recovers and recycles 30% to 60% of the cutting fluid content.

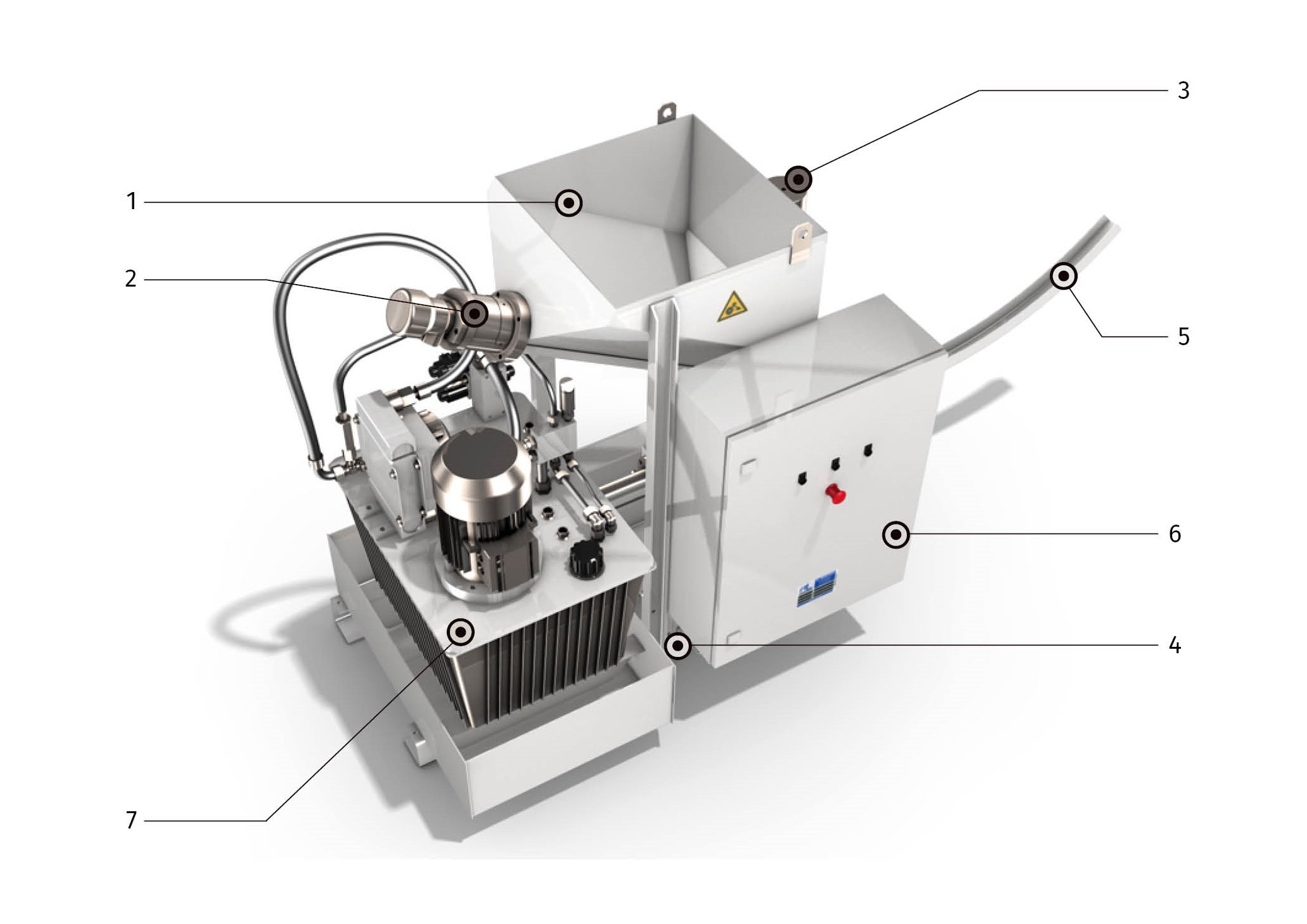

| 1 - Receiving hopper. |
| 2 - Feeding screw. |
| 3 - Compression cylinder. |
| 4 - Oil drip tray. |
| 5 - Briquette discharge ramp. |
| 6 - Control panel. |
| 7 - Hydraulic power pack. |
| Aluminium - 20 Kg/h |
| Steel - 50 Kg/h |
| Sludge - 20 Kg/h |

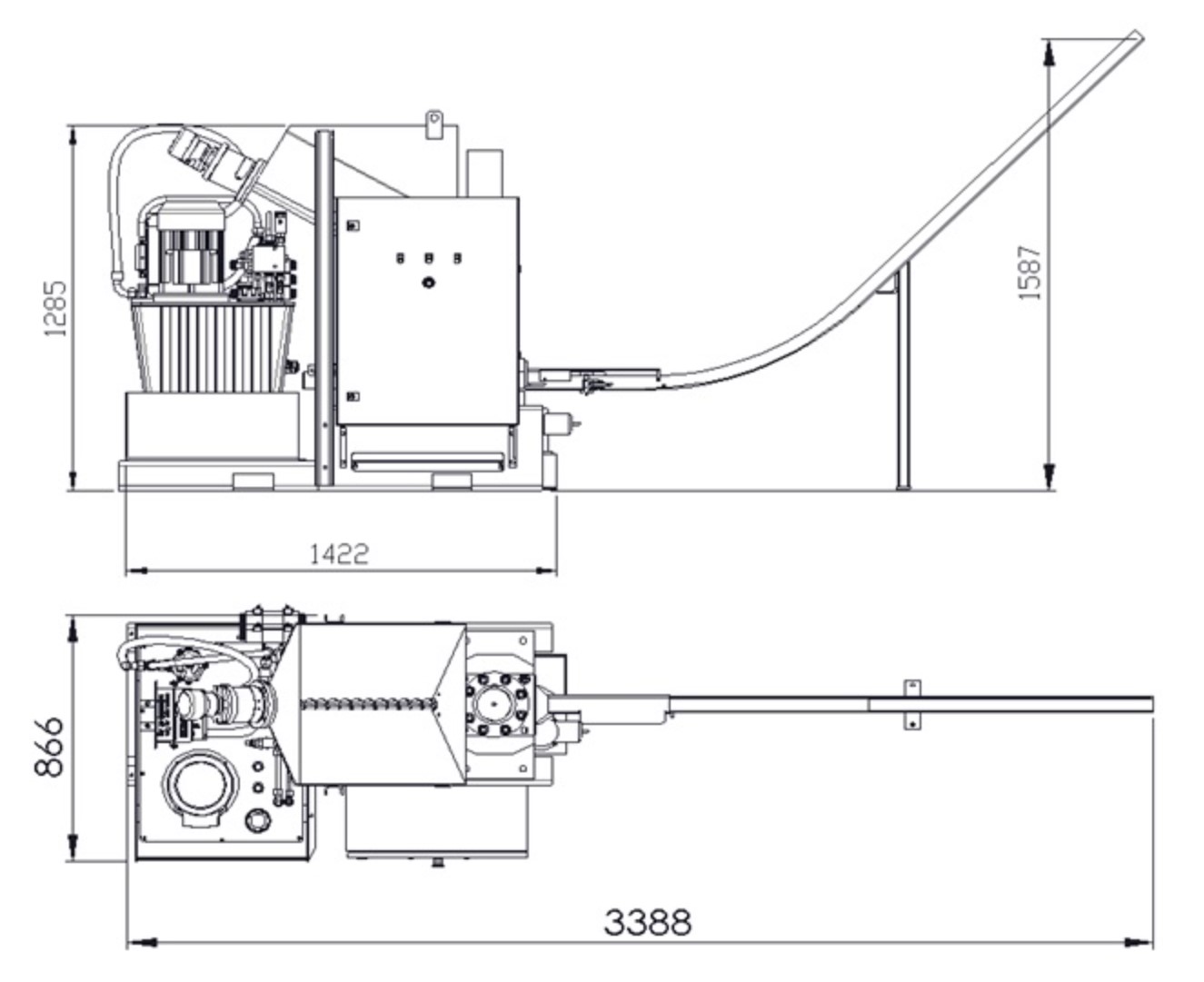

| H: Height (1285 mm) |
| H2: Ramp height (1587 mm) |
| P: Depth (1422 mm) |
| L: Length (3388 mm) |
| W: Width (866 mm) |
