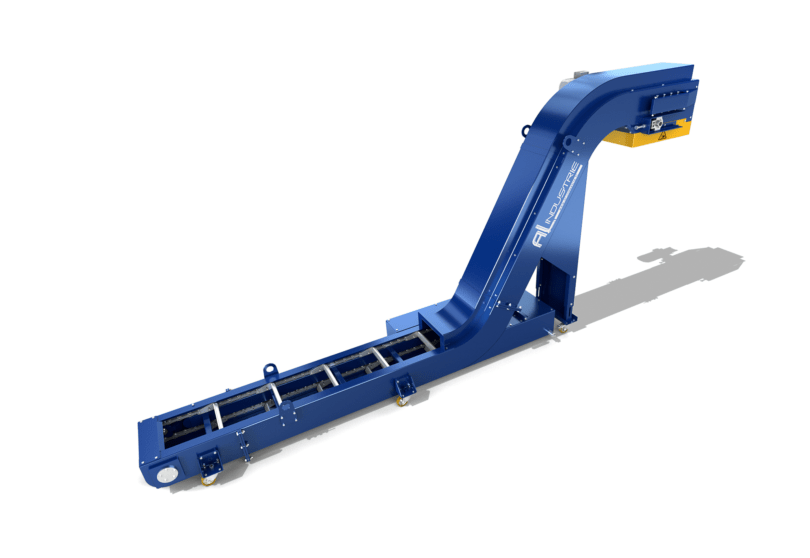

R63 scraper conveyor
Industrial volume


The R63 conveyor is equipped with a 63 mm pitch double chain with scraper blades. This standard series model is the most commonly used in the industry to solve any evacuation problem.

The material to be conveyed falls into the conveyor box. This is carried to the top by the scraper. If liquid is present, it is evacuated into the conveyor case and recovered by an optional pump. All our conveyors can be designed with tailor-made lift angles 0 - 30 - 45 - 60 - 70 degrees.

Download Download FT_T63R_R63R
Convoyeur à raclettes R63 - Vue 1
Convoyeur à raclettes R63 - Vue 2
Convoyeur à raclettes R63 - Vue 3
Convoyeur à raclettes R63 - Vue 4
Convoyeur à raclettes R63 - Vue 5
Convoyeur à raclettes R63 - Vue 6
Convoyeur à raclettes R63 - Vue 1
Convoyeur à raclettes R63 - Vue 2
Convoyeur à raclettes R63 - Vue 3
Convoyeur à raclettes R63 - Vue 4
Convoyeur à raclettes R63 - Vue 5
Convoyeur à raclettes R63 - Vue 6

1 - Exclusive structure guaranteed for 10 years.
2 - Wear-resistant bearing races.
3 - Machined guide curves.
4 - High-strength steel or stainless steel squeegees.
5 - Geared motor with integrated torque limiter.
6 - Patented "anti chip return" system.
7 - Lifting angles: 0 - 30 - 45 - 60 - 70 degrees.
Evacuation of small chips...
Transport of dust and ash....
Conveying sawdust....
This type of conveyor is the most commonly used in industry to solve any evacuation problem. Do you have a convoying project in mind? Contact our experts.
Feed hopper
Raising or side panels
Fixed or rotating outlet chute
Liquid recovery tank with or without pump
Pump
Control panel with or without drive
A : Feed (mm)
H: Height (mm)
L: Length (mm)
LT : Head (mm)
NW : Width (mm)
