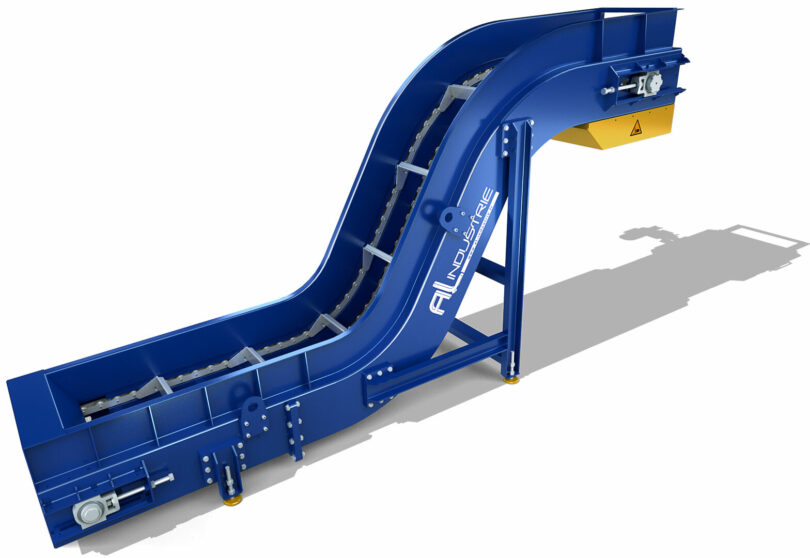

R100 scraper conveyor
Large volume
The R100 conveyor is equipped with a 100 mm pitch double chain with scraping blades. This is the model most widely used in heavy industry for high-volume bulk evacuation.
The material to be conveyed falls into the conveyor box. This is scraped off at the top. If liquid is present, it is evacuated into the conveyor case and recovered by an optional pump. All our conveyors can be designed with tailor-made lift angles 0 - 30 - 45 - 60 - 70 degrees.
| 1 - Exclusive structure guaranteed for 10 years. |
| 2 - Wear-resistant bearing races. |
| 3 - Machined guide curves. |
| 4 - High-strength steel or stainless steel squeegees. |
| 5 - Geared motor with integrated torque limiter. |
| 6 - Patented "anti chip return" system. |
| 7 - Lifting angles: 0 - 30 - 45 - 60 - 70 degrees. |
| Bulk waste disposal.... |
| Transport of dust and ash.... |
| Conveying sawdust and wood chips... |
| This conveyor model is the most widely used for high-volume bulk evacuation. Do you have a convoying project in mind? Contact our experts. |
| Feed hopper |
| Raising or side panels |
| Fixed or rotating outlet chute |
| Liquid recovery tank with or without pump |
| Pump |
| Control panel with or without drive |
| A : Feed (mm) |
| H: Height (mm) |
| L: Length (mm) |
| LT : Head (mm) |
| NW : Width (mm) |
