Steel mat 152.4 pitch
Very high volume

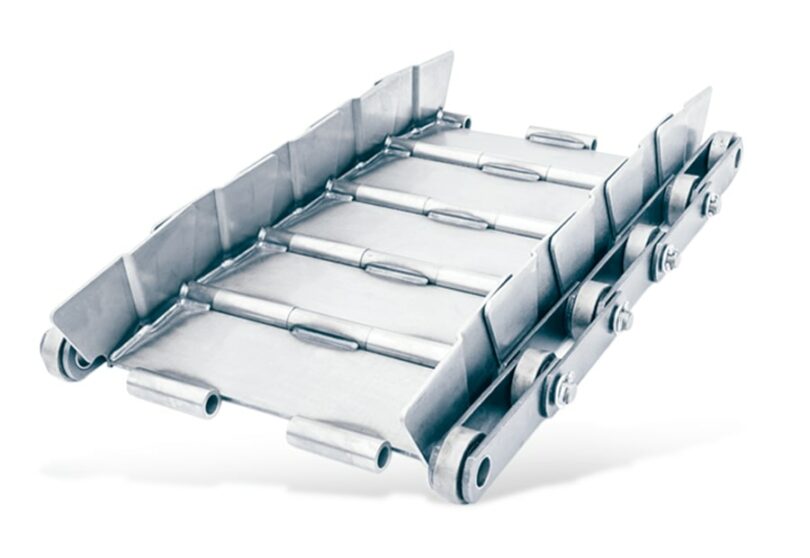

The 152.4 mm pitch metal belt is part of the "Very Large Volume" range. It has been designed for applications in the steel industry, transporting cold or hot castings and forgings, scrap and metal.
This 152.4 conveyor belt provides conveying solutions for :
- Bulk products, small parts, screws and bolts...
- Chips, fragmented steel, fragmented aluminum...
- Single products, small parts, screws and bolts...
| 1 - Widths from 200 to 1,500 mm. |
| 2 - Hinge thickness 5 mm. |
| 3 - Side edge height 100 mm. |
| 4 - Breaking load per strand 190,000 N. |
| 5 - Ø 66.7 mm track rollers. |
| 6 - Minimum turning radius 650 mm. |
| 7 - Maximum operating temperature 300°C. |
| Ferrous |
| Wood |
| Granules |
| Plastics |
| Cardboard |
| Smooth hinge |
| Armored sheet metal hinge |
| NW: Nominal size |
| NB: Useful width |
| B1 : Outside width |
| B2: Chain pitch |
| B3: Max. overall width |
