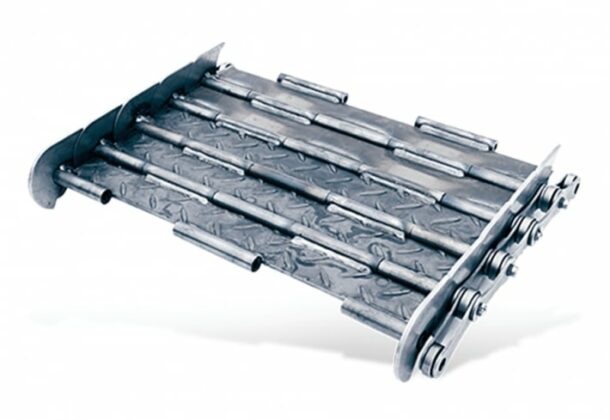

Steel mat 63 R pitch – 10 mm gap
Industrial volume - heavyweight
The reinforced metal belt with 63 mm pitch is part of the "Industrial volume - heavyweight" range. Its reinforced, mechanically-welded design is ideal for applications in the steel industry, conveying cold or hot castings and forgings, screws, metal parts, waste and scrap.
This 63 R conveyor belt delivers reinforced conveying solutions for :
- Food, rolls, sweets...
- Bulk products, small parts, screws and bolts...
- Chips, fragmented steel, fragmented aluminum...
- Mud, rectification, liquid presence...
- Single products, small parts, screws and bolts...
| 1 - Welded design. |
| 2 - Nominal sizes from 200 to 1500 mm |
| 3 - Hinge thickness 5 mm. |
| 4 - Maximum air gaps of 1.5 mm. |
| 5 - Side edge heights of 39.8 mm |
| 6 - Minimum upward radius of 150 mm |
| 7 - 10 mm or 20 mm drive chains |
| 8 - 30 mm track rollers |
| 9 - Breaking load per strand 50,000 N |
| 10 - Maximum operating temperature 300°C |
| Ferrous |
| Wood |
| Granules |
| Plastics |
| Cardboard |
| Flat drive bars. |
| Folded drive bars. |
| Reinforced mat with side edges. |
| Smooth hinge |
| Hammered hinge |
| Perforated hinge |
| Hammered hinge - perforated |
| NW: Nominal size |
| NB: Useful width |
| B1 : Outside width |
| B2: Chain pitch |
| B3: Max. overall width |
