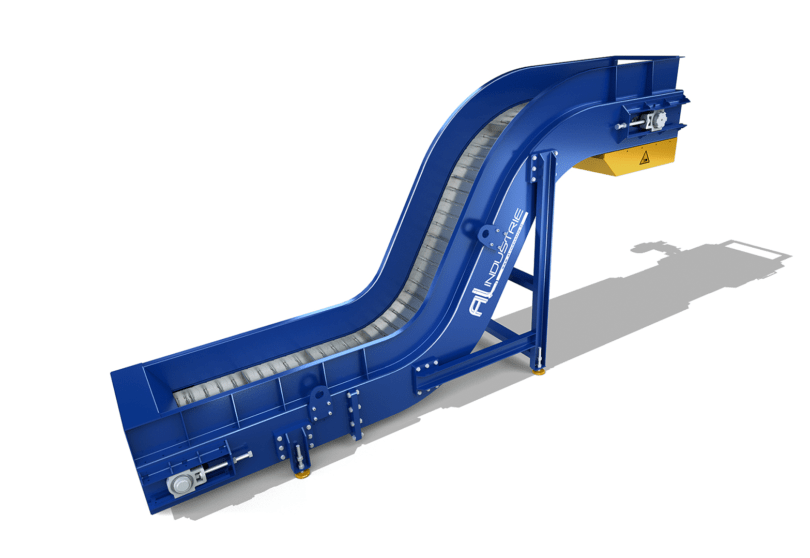

T100 belt conveyor
Large volume
The T100 conveyor is equipped with a 100 mm pitch steel belt. Its exceptional sturdiness enables you to transport small, medium and large parts.
The material to be conveyed is transported on the upper part of the metal-hinged belt. Bars are used to transport it on the incline until it is unloaded. When cutting fluids are used, they are collected in the box and pumped back into the machine tank via the drip tray or a pump.
| 1 - Exclusive structure guaranteed for 10 years. |
| 2 - Wear-resistant bearing races. |
| 3 - Machined guide curves. |
| 4 - Steel or stainless steel mat with high-strength hinges. |
| 5 - Geared motor with integrated torque limiter. |
| 6 - Patented "anti chip return" system. |
| 7 - Lifting angles: 0 - 30 - 45 - 60 - 70 degrees. |
| Wet or dry chip evacuation.... |
| Transport of small parts, waste... |
| Conveying stamps and punching debris... |
| This conveyor model adapts to all types of applications and environments. Do you have a convoying project in mind? Contact our experts. |
| Feed hopper |
| Raising or side panels |
| Fixed or rotating outlet chute |
| Liquid recovery tank with or without pump |
| Pump |
| Control panel with or without drive |
| Smooth hinge |
| Reinforced sheet metal hinge |
| A : Feed (mm) |
| H: Height (mm) |
| L: Length (mm) |
| LT : Head (mm) |
| NW : Width (mm) |
